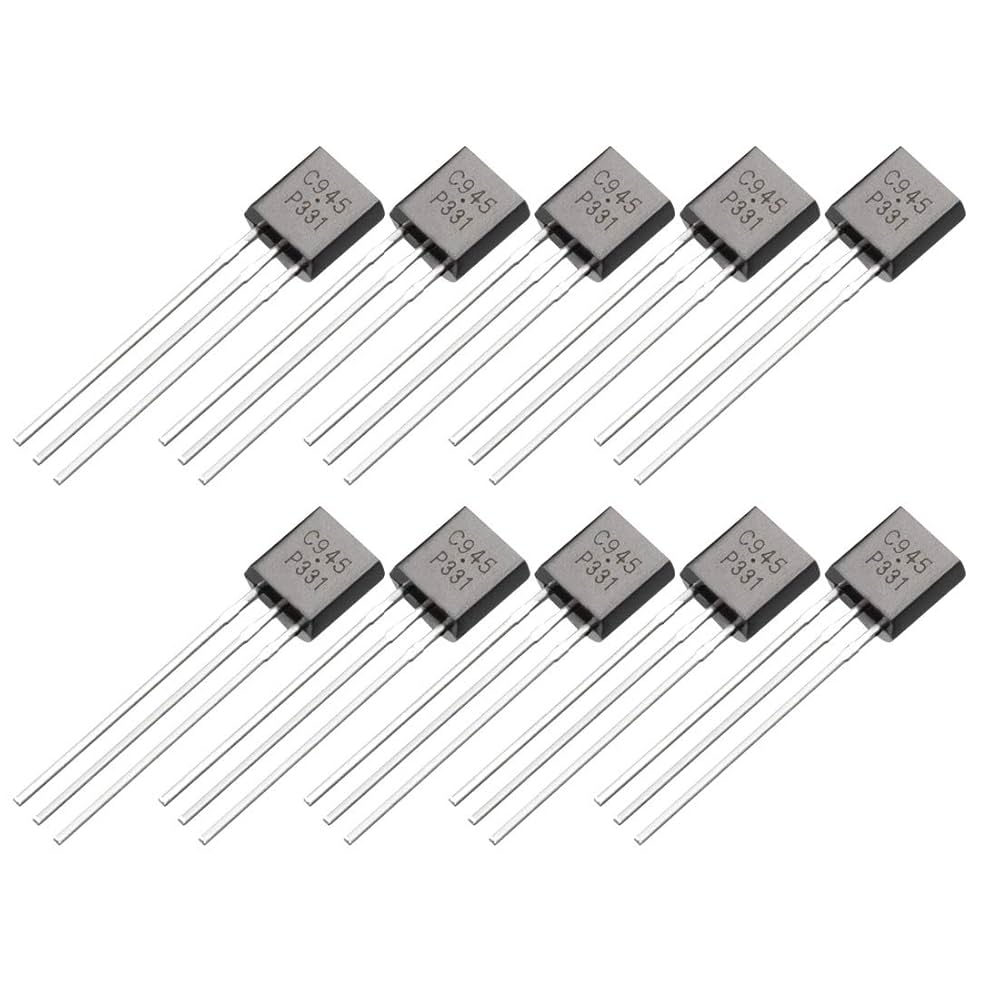

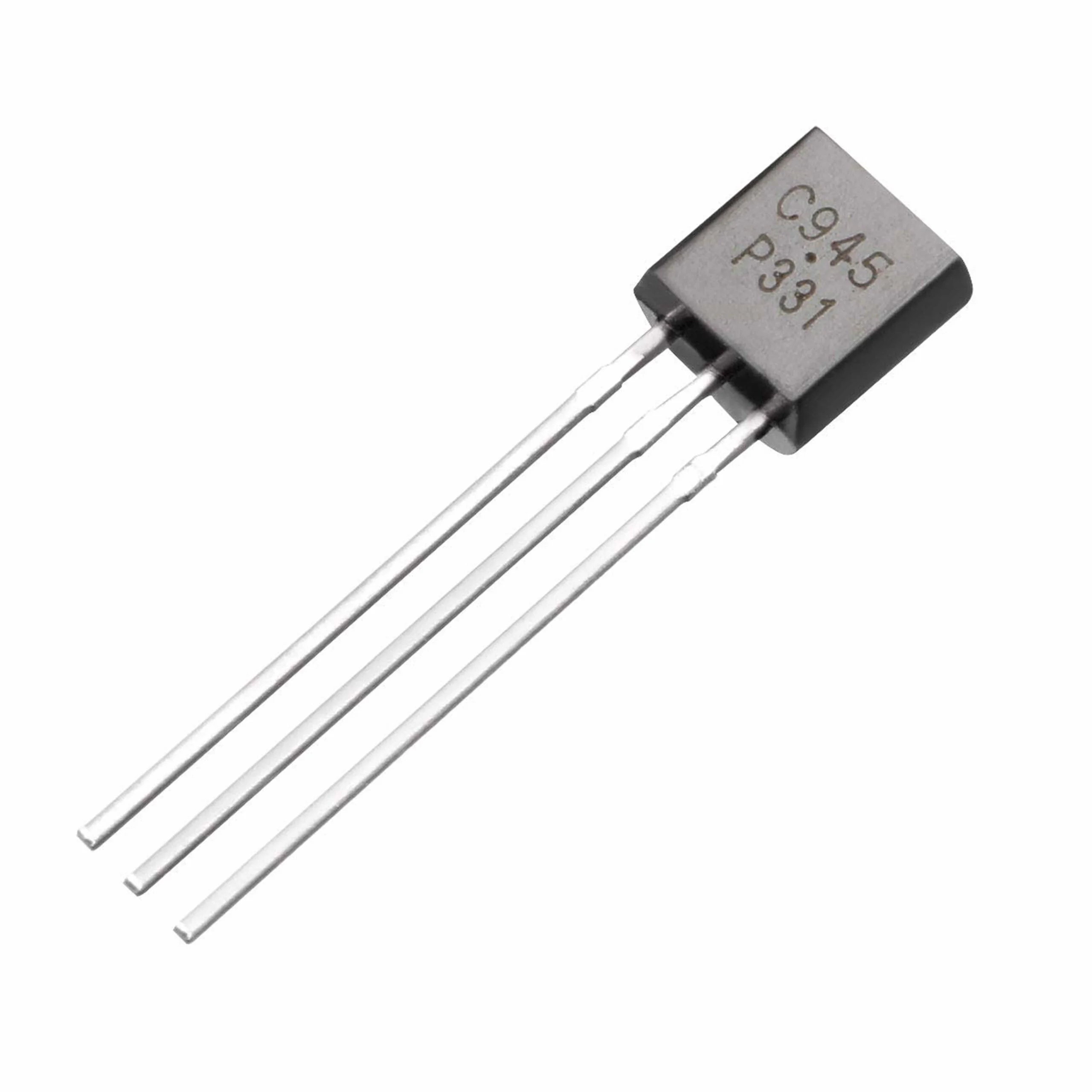

ترانزیستور C945 نوع NPN پکیج TO-92

Specification

P/N: C945 / F945
Mounting Style: Through Hole
Package / Case: TO-92-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 50 V
Collector- Base Voltage VCBO: 60 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 150 mV
Maximum DC Collector Current: 150 mA
Pd – Power Dissipation: 250 mW
Gain Bandwidth Product fT: 300 MHz
Minimum Operating Temperature: –
Maximum Operating Temperature: + 150 C
Continuous Collector Current: 150 mA
DC Collector/Base Gain hfe Min: 40
DC Current Gain hFE Max: 700
